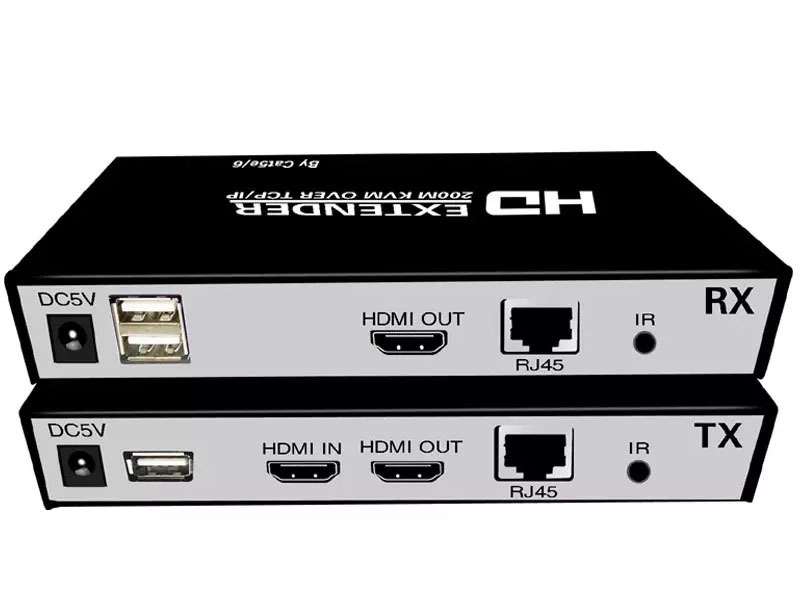

HDMI 200M Extender over IP is based on TCP/IP standard. It transmits your HD display with the high resolution up to 200 meters away from your DVD or computer source by using one CAT5e/6 cable.
At the same time, it’s convenient to transmit HDMI audio and video source by point-to-point mode, one point-to-many mode and cascade connection mode.
Features
- Support HDMI 1.3
- Support point-to-point mode, one point-to-multi point mode and cascade connection mode
- 802.3 Ethernet standard
- Support IR remote control
- Support USB mouse and keyboard extension
- The design of pure hardware, plug and play, no need for additional software
Specifications
| Resolutions | 480p,720p,1080p |
| Audio | Sample rate:32kHz,44.1kHz and 48kHz code |
| IR remote control | 38 KHz;NEC |
| HDMI version | HDMI 1.3 |
| Power adapter | DC:5V/1A |
| Power consumption | HDMI sender:3W HDMI receiver:3W |
| Size(L-W-H) | 163*87*24mm |
| Weight | 474gX2 |
| Operating Temperature/Humidity | 0℃-45℃/10%-80%RH(no condensation) |
| Storage Temperature/Humidity | -10℃-70℃/5%-90%RH(no condensation) |
